Anywhere Mobility Studio Documentation
Anywhere Portal Settings
Brief
The following table describes the different application settings available in the Anywhere portal.
Settings overview
| Setting name | Area (Cloud/On Premise) | Purpose |
|---|---|---|
| ApiBaseURL | Both | The endpoint of the api of Business Central |
| AuthenticationType | Both | Defines how the portal authenticates with the Business Central webservice |
| AuthorityURI | Cloud | URL where authorisation token is requested |
| ClientID | Cloud | The ID of the app registration the Azure tenant |
| ClientSecret | Cloud | Used with the ClientID to authenticate as an Azure App |
| Company | Both | Links the portal to 1 company in the tenant |
| ConcurrentUsersExceeded | Both | The message returned when no more users can log in |
| DataUploadErrorMsg | Both | The message returned when an upload of files/pictures exceeds the maximum size |
| Debug | Both | When enabled, error messages show more detailed information |
| enableAPI | Both | Switches the communication channel between Soap and API(odata), default false (Soap) |
| EnableCookies | Both | Enables cookies to save the current selected company in the company dropdown on the login page |
| EnvironmentName | Cloud | The environment that the portal connects to (Production/Sandbox) |
| ErrorOnTop | Both | Determines where the error is displayed when an error occurs before or after the first control (default false) |
| FirstColumnWidth | Both | The width of the first column on grids when no fields are present |
| GridButtonsImageFolder | Both | Obsolete |
| InfiniteScrolling | Both | Switch between pages or one continous list |
| InitialRetries | Both | How many attempts the portal takes to connect to the webservice |
| LicenseFile | Both | The local path to the license file |
| LoggingEnabled | Both | Creates a log containing all communication between BC and the Portal |
| MediaFolder | Both | The local path where mediafiles are stored, both static and dynamic |
| MetaTagName1 | Both | MobileOptimised |
| MetaTagValue1 | Both | 320, default width of a window |
| MetaTagName2 | Both | Viewport |
| MetaTagValue2 | Both | Used for scaling on high resolution screens |
| MetaTagName3 | Both | For Apple Devices |
| MetaTagValue3 | Both | Set capability |
| PreAuthenticate | On Premise | To pre-authenticate the user to the webservice |
| RedirectURI | Cloud | Setup in the Azure App Registration, should point to this website |
| RPNURL | Cloud | Fallback when the RPNurl doesn't match the webservice URL |
| SessionTimeOut | Both | This will determine when a user will have to log in again (default 20 minutes |
| StyleSheet | Both | The stylesheet applied to the portal |
| Tenant | Both | The (Azure) tenant |
| UseIcons | Both | Use of Icon font instead of images |
| WebServiceUrl | Both | The SOAP url from the Business Central Service |
| WebServiceDomain | On Premise | Webservice User credentials |
| WebServicePassword | On Premise | Webservice User credentials |
| WebServiceUserName | On Premise | Webservice User credentials |
Setting details
Api Base URL
The API base URL is the endpoint where the Portal will try to retrieve the license from. API's work with the OData protocol, and require that OData is enabled on the server.
See Microsoft Learn for more info.
For Cloud environments, the Api Base URL will usually be
https://api.businesscentral.dynamics.com/v2.0/<environmentname>/api/
For On Premise the api base url will usually be:
http://localhost:4048/BC/api
http://<ServerName>:<OData Port No>/<Service>/api
See Microsoft Learn for details on endpoint structures.
Authentication Type
The values available for this setting are the following: |Value|Comment| |--|--| |OnPrem|Connects to an onpremise environment, the default value. |AzApp|Connects to an Azure environment via an app registration with clientID/Secret |AzDelegate*|Deprecated, uses the credentials from an admin to delegate permissions. |AZUser*|Deprecated, requires users to login first on Azure, then they get access to the portal, requiring them to login with their mobile user account.
The authentication type determines if the portal connects to a Business Central environment with local/domain users or via Azure Authentication methods.
If configured incorrectly, an error may occur that suggest that AZApplication is a valid setting, this is however a known issue.
enableAPI
Default value: false The portal communicates via SOAP with Business Central except for the license. When enabled, all communication will go through the API channel. This has a minor performance increase, and will handle more errors. The Soap channel could only handle some error types. Via the api channel error handling is improved on SaaS level, and not obfuscated with a http 500 message.
Company
Default value: ''
When empty and connected to an environment with multiple companies. A dropdown will appear in the login screen to allow company selection. When this setting is filled out, it will disappear and users can only log in to 1 company.
License File
The license file key has the initial value of
~\Files\license.dat
To accomodate the new license model (see License Update), the Portal will use the folder to retrieve the license file. From the 1st of October 2023, only .tilicense files will be valid.
SessionTimeOut
Default value: 20 (minutes)
Determines how long a session remains active in the users browser before they have to log in again. This requires cookies to be enabled.In the Anywhere Framework, sessions remain active indefinitely until the user logs out. If the session becomes inactive, the user will be automatically redirected to the login page. Otherwise, they will return to the last page they visited.
ErroronTop
Default value: false
This setting should be enabled to display error messages at the top of the portal screen.
Please refer here when this setting is enabled

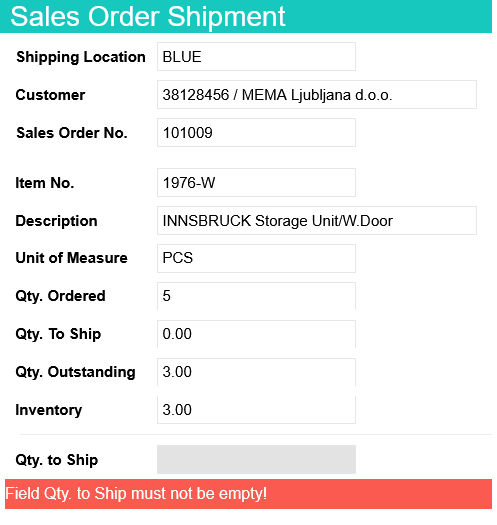

Please refer here when this setting is disabled
WebServiceURL
The Webservice URL used to connect to Business Central
For Cloud configurations this will be https://api.businesscentral.dynamics.com/
For On Premise the webservice url will usually be:
http://localhost:4047/BC/WS/
